ProductsCompressed air preparationModular adsorption dryers ADM-PDP with pressure dew point control, pre-installed pre- and post-filters

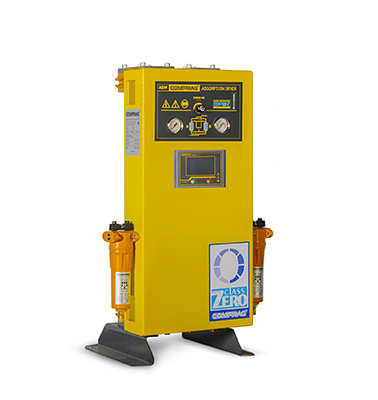

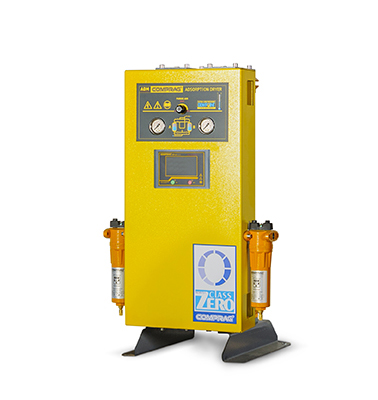

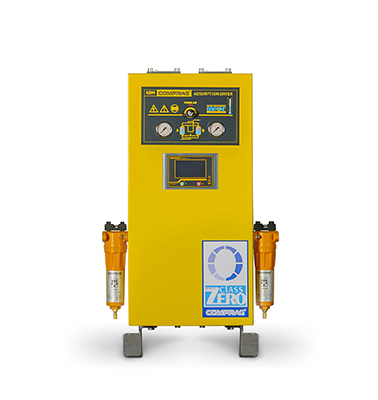

Modular adsorption dryer ADM-PDP with pressure dew point control and pre-installed pre- and post-filters

Specifications

Article14500201
ModelADM-05-PDP
Volume flow (m³/min)0.5
Max. operating pressure (bar)16
screw connection1/2"
Nominal voltage (phase/V/Hz)1/230/50
Length L (mm)420
Width D (mm)460
Height H (mm)930
Weight (kg)55
Shipping typeS - Pallet

* Measured according to ISO 7183

1.860,00 €
zzgl. MwSt
Quantity pcs.FREE delivery within Germany!
Delivery time 10 working days
Modular adsorption dryer ADM-PDP with pressure dew point control and pre-installed pre- and post-filtersModular adsorption dryer ADM-PDP with pressure dew point control and pre-installed pre- and post-filtersModular adsorption dryer ADM-PDP with pressure dew point control and pre-installed pre- and post-filters Modular adsorption dryer ADM-PDP with pressure dew point control and pre-installed pre- and post-filters

Modular adsorption dryers ADM-PDP series are equipped with the most advanced pressure dew point control (PDP control). Adsorption dryers ADM consist of two aluminium profile columns containing the optimal amount of desiccant, a touch screen display controller, a constant flow measurement chamber, an accurate dew point sensor, thereby offering the highest quality compressed air drying at the lowest cost.

Air demand and purge air consumption

The Comprag dew-point-dependent control system significantly reduces energy costs while ensuring a constant and reliable dew point. Using the specially developed controller in combination with the accurate and reliable dew-point sensor, the PDP control system keeps the regeneration time constant, while the adsorption time is adjusted exactly proportional to the load situation. As a result, only the actually required quantity of purge air is used. An investment in the PDP control system has a very short amortization period - within six months.

  • Replacement of desiccant without dismantling the compressed air lines
  • Touch screen display controller
  • Manual purge air adjustmen
  • Precise dew-point sensor
  • Measuring chamber
  • Installed pre- and after-filters
