ProductsOperator safety equipmentBreathing air conditioner

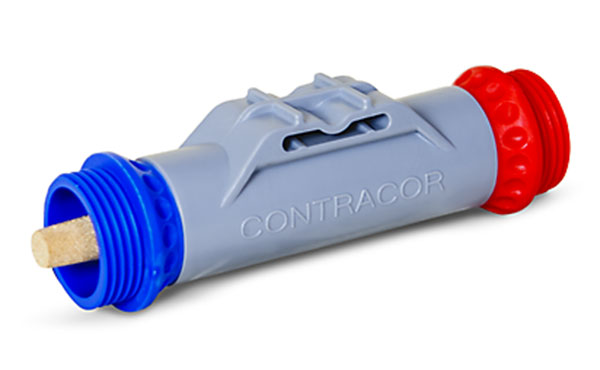

Air conditioner cold /hot for blast helmets COMFORT and ASPECT

Specifications

Article	10130840
Model	CCT
Minimum Operating Pressure	2,5 bar
Max. operating pressure	5,0 bar
Most effective range	4.5 - 5.0 bar
Minimum air flow with regulator at 2.5 bar	165 Nl/min
Max. air flow with regulator at 5.0 bar	320 Nl/min
Minimum ambient temperature	-10°C
Max. ambient temperature	+60°C
Shipping type	Parcel shipping

from 1 pcs. 120,00 €
from 10 pcs. 102,00 €
from 50 pcs. 94,00 €

Net, VAT-free shipment

Quantity pcs.Delivery time 3 working days

Application

The output temperature of the CCT air conditioner is up to ± 20°C below or above the input temperature.

The CCT breathing air conditioner functions according to the principle of airflow separation. It is intended for heating or cooling breathing air which travels from the breathing air filter to the blasting hood.

Downloads

Catalogue

Download

User manual

Download
